b2 High Voltage VLF High Voltage Test Set HVA120

b2 High Voltage · Model HVA120 · Electrical Test Instruments

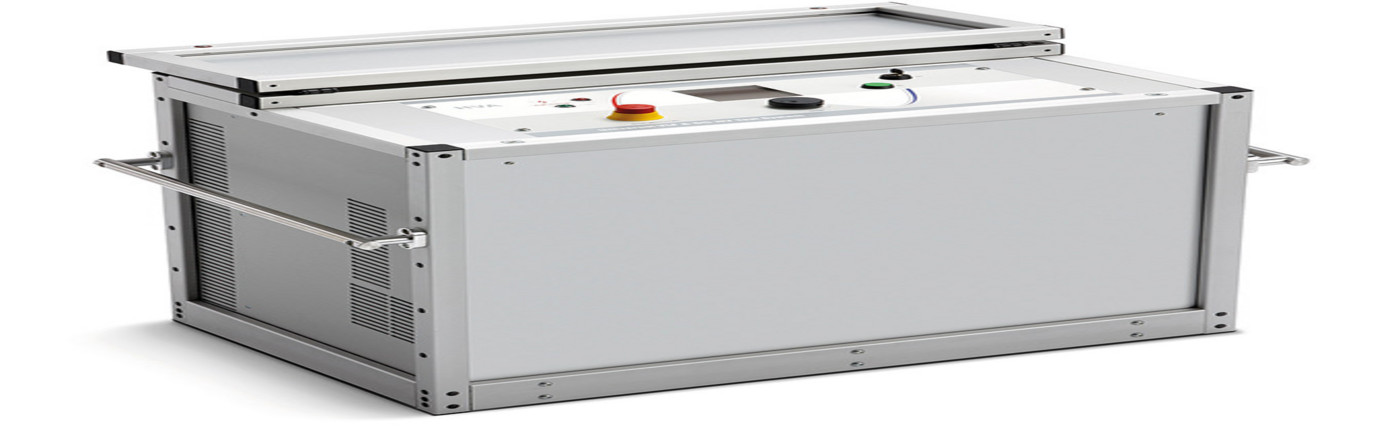

b2 High Voltage HVA120

Top-of-range, van or trailer-mountable VLF test set for assessing medium-voltage cables up to 69 kV per IEEE 400.2, supporting VLF, DC and sheath testing.

Key specifications

  • Output voltage: max. 120 kVpeak / 85 kVrms
  • Output load: 0.5 uF @ 0.1 Hz @ 85 kVrms (5.0 uF @ 0.01 Hz)
  • Weight: 198 kg / 436.5 lbs
  • Cable rating: up to 69 kV, testable length up to 2 km
  • Modes: VLF (sine/square), DC, sheath test & fault location

Download the HVA120 datasheet (PDF)

Request a quote from Controware — your authorized b2 High Voltage distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
