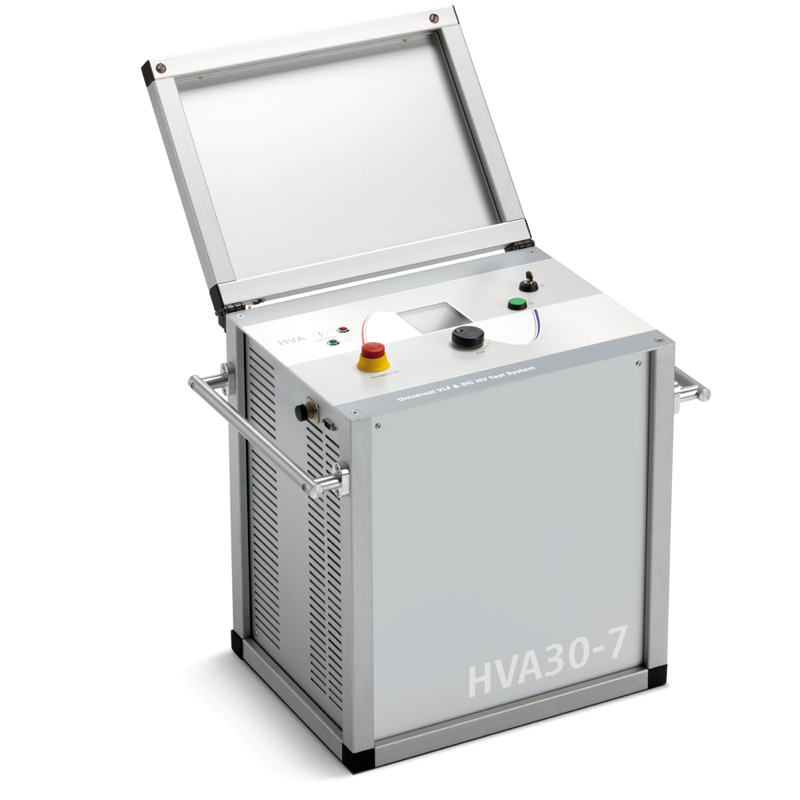

b2 High Voltage Extra-Power VLF High Voltage Test Set HVA30-7

Name: Extra-Power VLF High Voltage Test Set HVA30-7
Brand: b2 High Voltage
SKU: HVA30-7

b2 High Voltage · Model HVA30-7 · Electrical Test Instruments

Extra-power member of the HVA series delivering up to 120 mA output current to test medium-voltage cables up to 15 kV and lengths up to 24 km per IEEE 400.2.

Key specifications

Output voltage: max. 34 kVpeak / 24 kVrms
Output load: 6.0 uF @ 0.1 Hz @ 24 kVrms (15.0 uF @ 0.01 Hz)
Output current: up to 120 mA
Weight: 57 kg / 125.6 lbs
Modes: VLF (sine/square), DC, sheath test & fault location

Download the HVA30-7 datasheet (PDF)

Request a quote from Controware — your authorized b2 High Voltage distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
