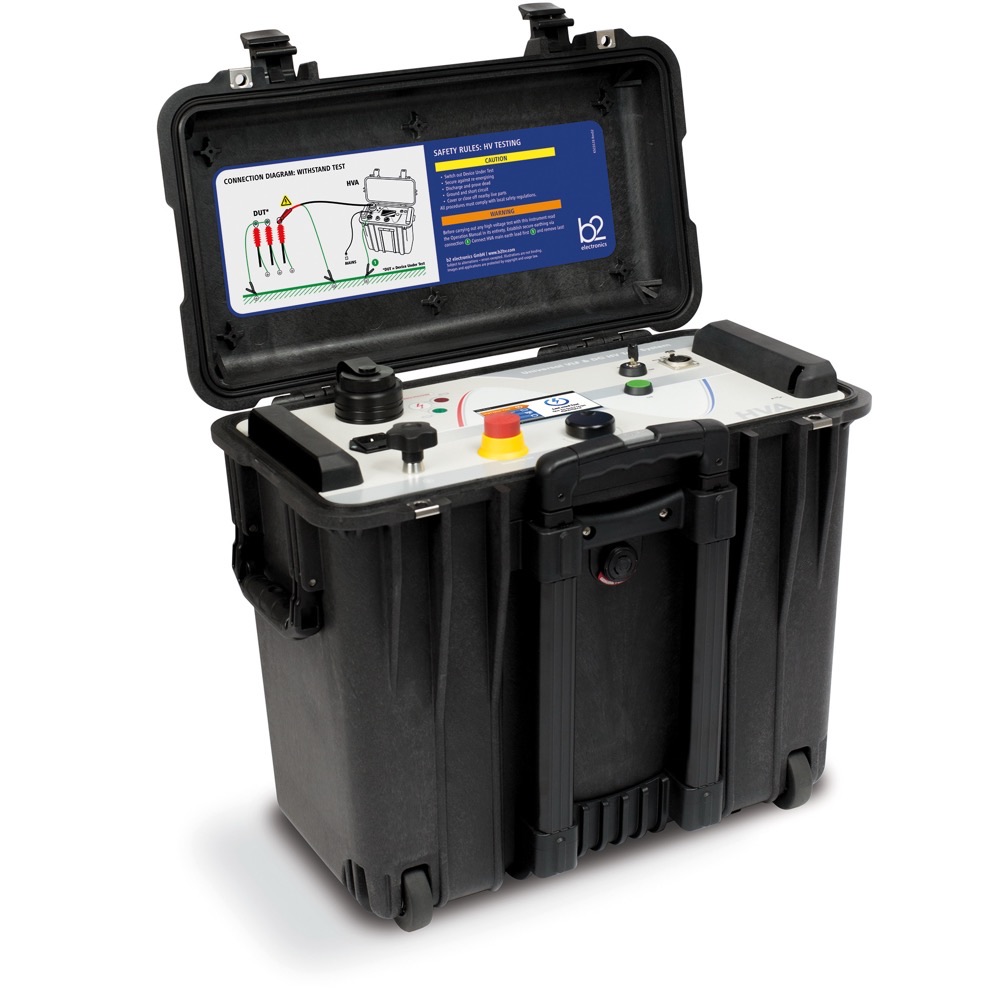

b2 High Voltage VLF High Voltage Test Set HVA34-1 & HVA34TD-1

b2 High Voltage · Model HVA34-1 / HVA34TD-1 · Electrical Test Instruments

Compact and portable VLF test set for medium-voltage cable condition assessment, with the TD-1 variant integrating a Tan Delta diagnostics unit for IEEE 400.2-2013 Monitored Withstand Testing.

Key specifications

• Output voltage: max. 34 kVpeak / 24 kVrms
• Output load: 1.5 uF @ 0.1 Hz @ 24 kVrms
• Weight: 39 kg / 86 lbs
• Modes: VLF, DC, sheath test & fault location, MWT (TD-1)
• Protection: IP67 (closed lid), dual discharge + 12 kV transient protection

Download the HVA34-1 / HVA34TD-1 datasheet (PDF)

Request a quote from Controware — your authorized b2 High Voltage distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
