b2 High Voltage VLF High Voltage Test Set HVA34

b2 High Voltage · Model HVA34 · Electrical Test Instruments

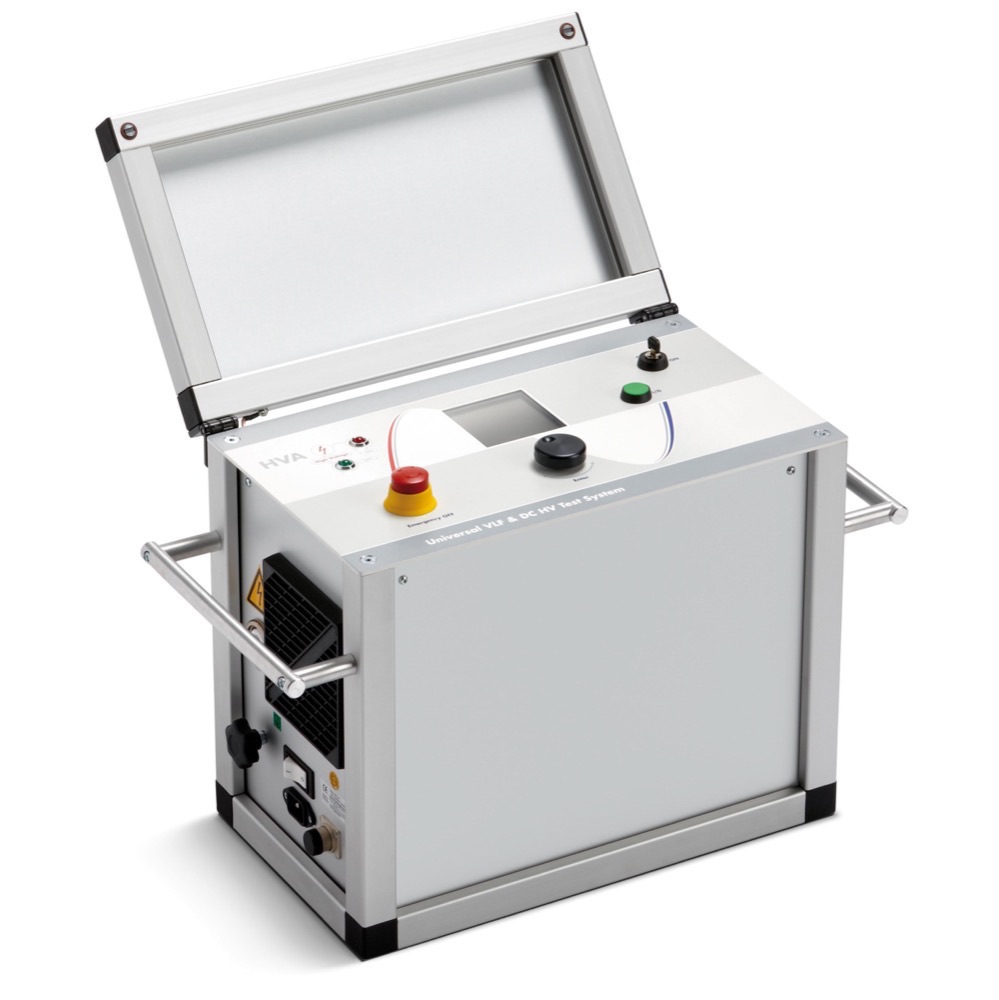

b2 High Voltage HVA34

Compact and portable VLF test set for assessing medium-voltage cables up to 15 kV per IEEE 400.2, performing VLF, DC and sheath testing with an excellent power-to-weight ratio.

Key specifications

  • Output voltage: max. 34 kVpeak / 24 kVrms
  • Output load: 0.4 uF (Double Power 0.9 uF) @ 0.1 Hz @ 24 kVrms
  • Weight: 20 kg / 44.1 lbs
  • Cable rating: up to 15 kV, testable length >3 km
  • Modes: VLF (sine/square), DC, sheath test & fault location

Download the HVA34 datasheet (PDF)

Request a quote from Controware — your authorized b2 High Voltage distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
