b2 High Voltage VLF High Voltage Test Set HVA45 & HVA45TD

b2 High Voltage · Model HVA45 / HVA45TD · Electrical Test Instruments

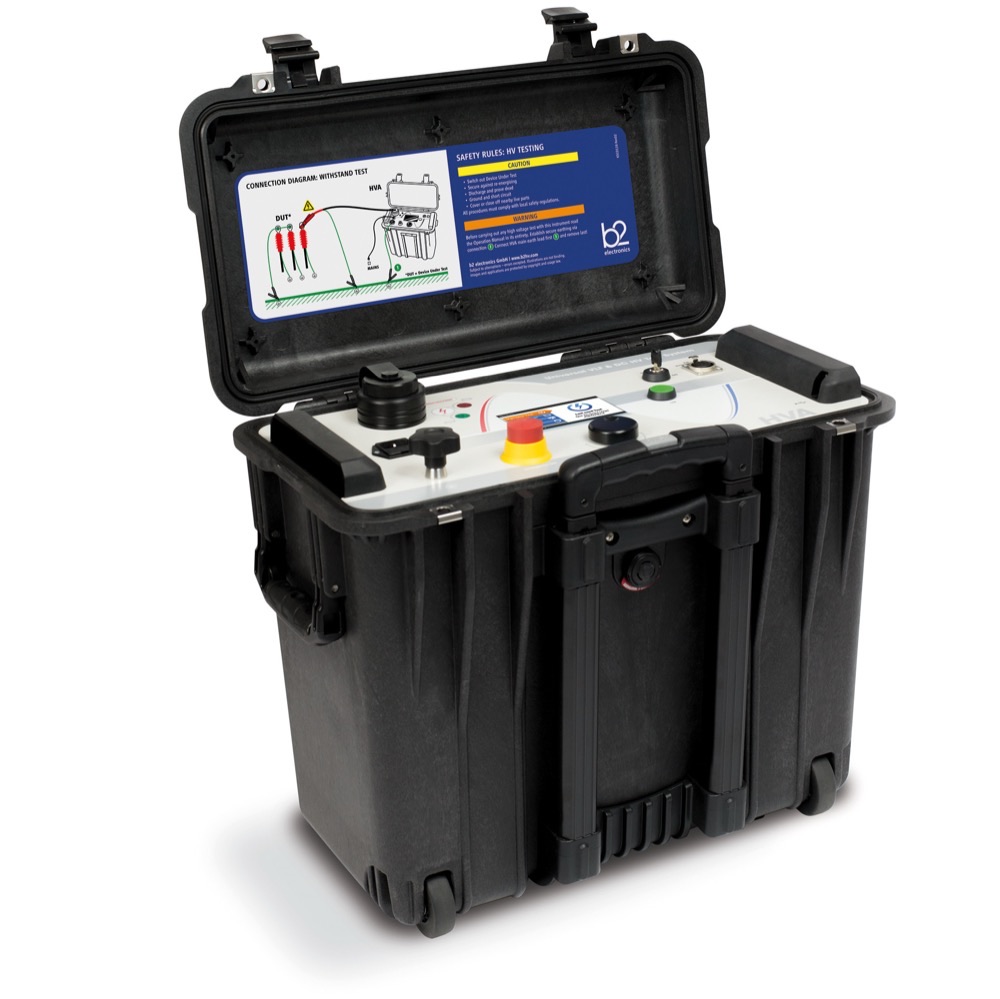

b2 High Voltage HVA45 / HVA45TD

Compact and portable VLF test set for medium-voltage cables with optional +4 kV output extension, the TD variant adding integrated Tan Delta diagnostics for IEEE 400.2-2013 Monitored Withstand Testing.

Key specifications

  • Output voltage: max. 45 kVpeak / 32.3 kVrms (49 kVpeak with +4 kV option)
  • Output load: 0.9 uF @ 0.1 Hz @ 32.3 kVrms
  • Weight: 39 kg / 86 lbs
  • Modes: VLF, DC, sheath test & fault location, MWT (TD)
  • Protection: IP67 (closed lid), dual discharge + 12 kV backfeed protection

Download the HVA45 / HVA45TD datasheet (PDF)

Request a quote from Controware — your authorized b2 High Voltage distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
