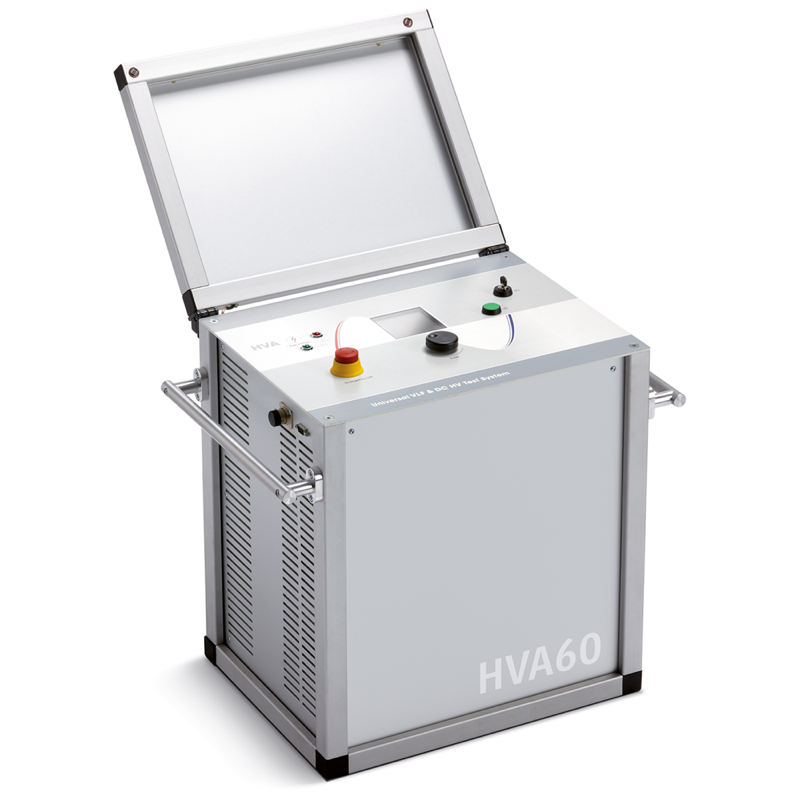

b2 High Voltage VLF High Voltage Test Set HVA60

Name: VLF High Voltage Test Set HVA60
Brand: b2 High Voltage
SKU: HVA60

b2 High Voltage · Model HVA60 · Electrical Test Instruments

Compact and portable VLF test set for assessing medium-voltage cables up to 35 kV per IEEE 400.2, performing VLF, DC and sheath testing with a strong power-to-weight ratio.

Key specifications

Output voltage: max. 62 kVpeak / 44 kVrms
Output load: 1.0 uF @ 0.1 Hz @ 44 kVrms
Weight: 57 kg / 125.6 lbs
Cable rating: up to 35 kV, testable length up to 4 km
Modes: VLF (sine/square), DC, sheath test & fault location

Download the HVA60 datasheet (PDF)

Request a quote from Controware — your authorized b2 High Voltage distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
