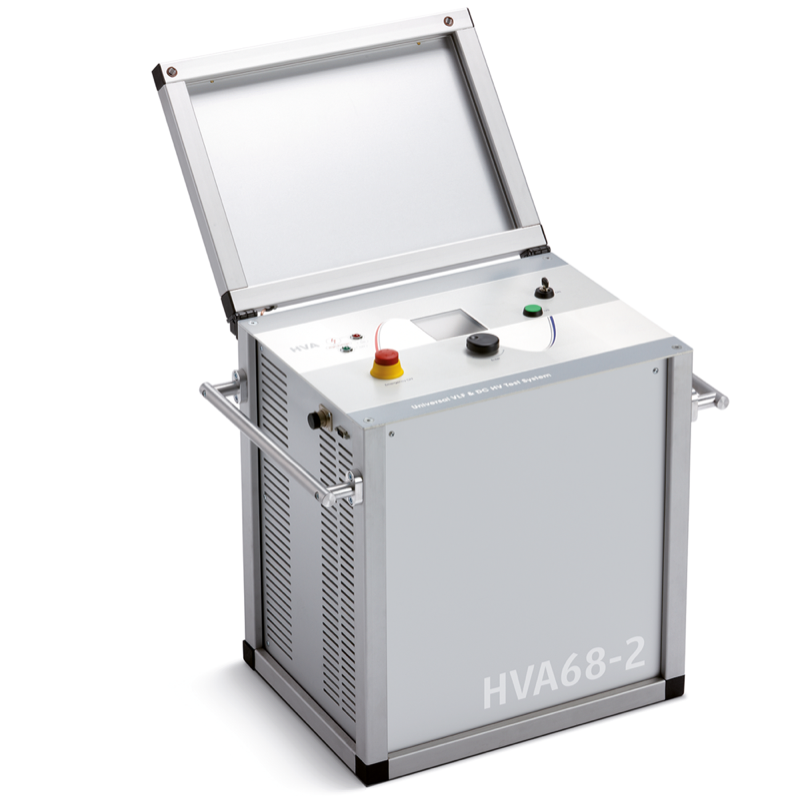

b2 High Voltage Extra-Power VLF High Voltage Test Set HVA68-2

Name: Extra-Power VLF High Voltage Test Set HVA68-2
Brand: b2 High Voltage
SKU: HVA68-2

b2 High Voltage · Model HVA68-2 · Electrical Test Instruments

Extra-power HVA series VLF test set with up to 88 mA output current for medium-voltage cables up to 35 kV and lengths up to 7 km per IEEE 400.2.

Key specifications

Output voltage: max. 68 kVpeak / 48 kVrms
Output load: 1.7 uF @ 0.1 Hz @ 48 kVrms (2.0 uF @ 44 kVrms)
Output current: up to 88 mA
Weight: 57 kg / 125.6 lbs
Modes: VLF (sine/square), DC, sheath test & fault location

Download the HVA68-2 datasheet (PDF)

Request a quote from Controware — your authorized b2 High Voltage distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
