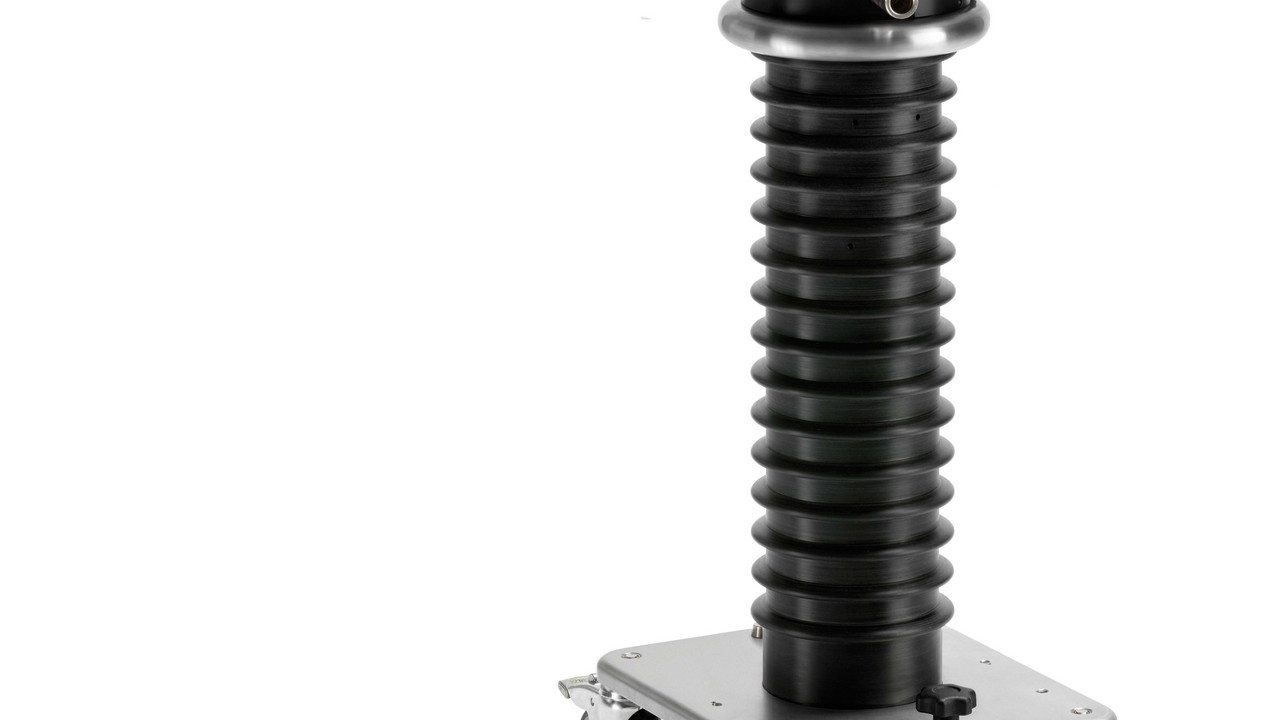

b2 High Voltage TD60-MC Tangens Delta Diagnostics System

b2 High Voltage · Model TD60-MC · Electrical Test Instruments

Compact, portable Tan Delta diagnostics unit that assesses the dielectric condition of medium-voltage cables at VLF frequencies, extendable to any matching HVA test set.

Key specifications

• Output voltage (sine): max. 62 kVpeak / 44 kVrms
• Tan Delta resolution / accuracy: 1x10-5 / +/- 1x10-4
• VLF frequency range: 0.01 to 0.1 Hz
• Connectivity: safe Bluetooth (no PC cabling)
• Compliance: IEEE 400.2, HD 620

Download the TD60-MC datasheet (PDF)

Request a quote from Controware — your authorized b2 High Voltage distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
