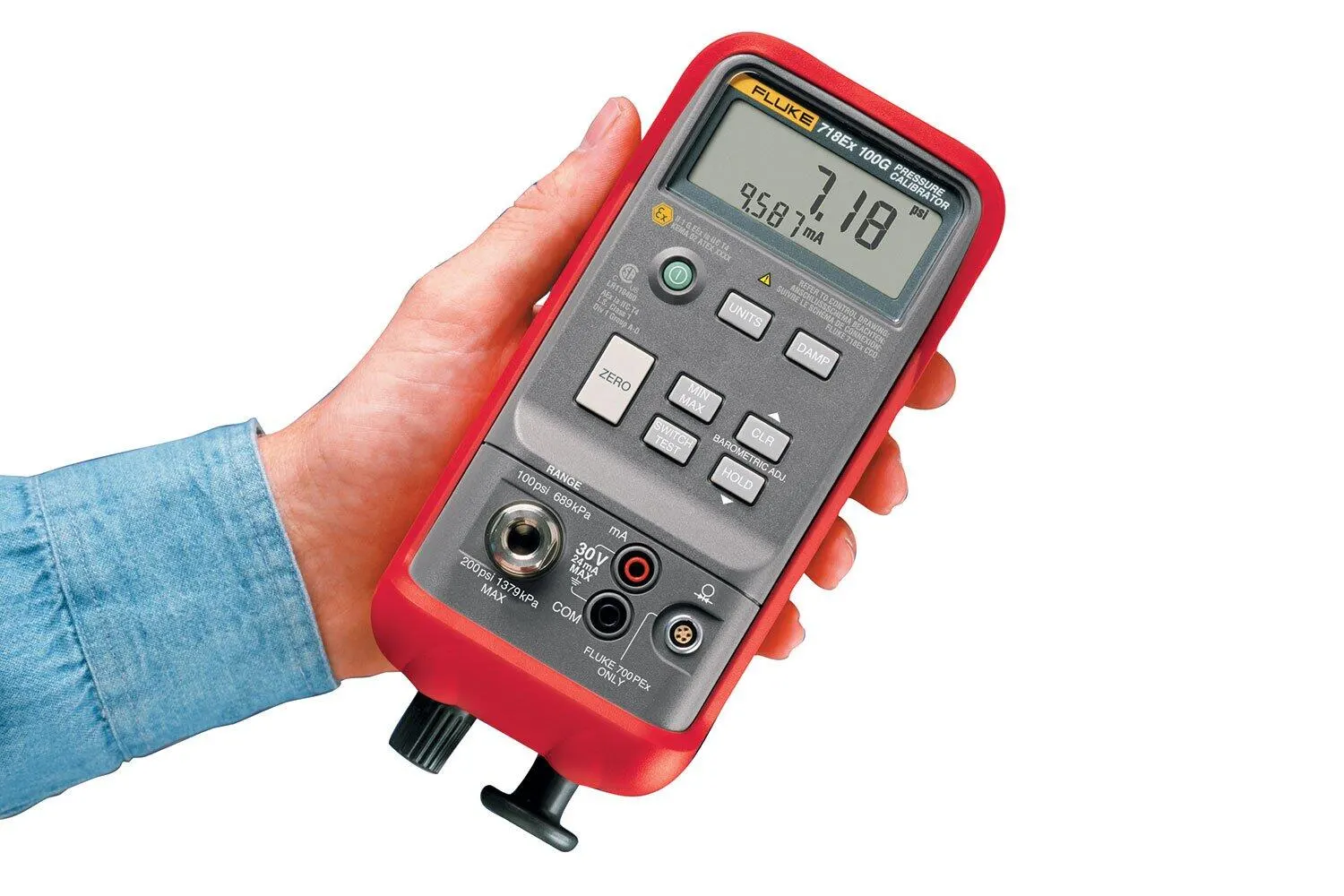

Fluke 718Ex Intrinsically Safe Pressure Calibrator

Fluke · Model 718Ex · Calibration Instruments

Self-contained intrinsically safe pressure calibrator for use in explosive environments. Built-in pressure/vacuum hand pump with vernier and bleed valve, plus mA measurement and pressure switch testing.

Key specifications

• ATEX II 1G Ex ia IIC T4 and I.S. Class I Division 1 Groups A-D compliant
• Internal pressure ranges 30, 100 and 300 psi (2/7/20 bar), accuracy 0.05% FS
• Pressure measurement to 3,000 psi/200 bar with intrinsically safe 700PEx modules
• Built-in pressure/vacuum hand pump with fine-adjust vernier and bleed valve
• mA measurement 0-24 mA, accuracy 0.02% rdg +/-2 counts; pressure switch test
• Min/Max/Hold functions; 3-year warranty (1 year on pump)

Download the 718Ex datasheet (PDF)

Request a quote from Controware — your authorized Fluke distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
