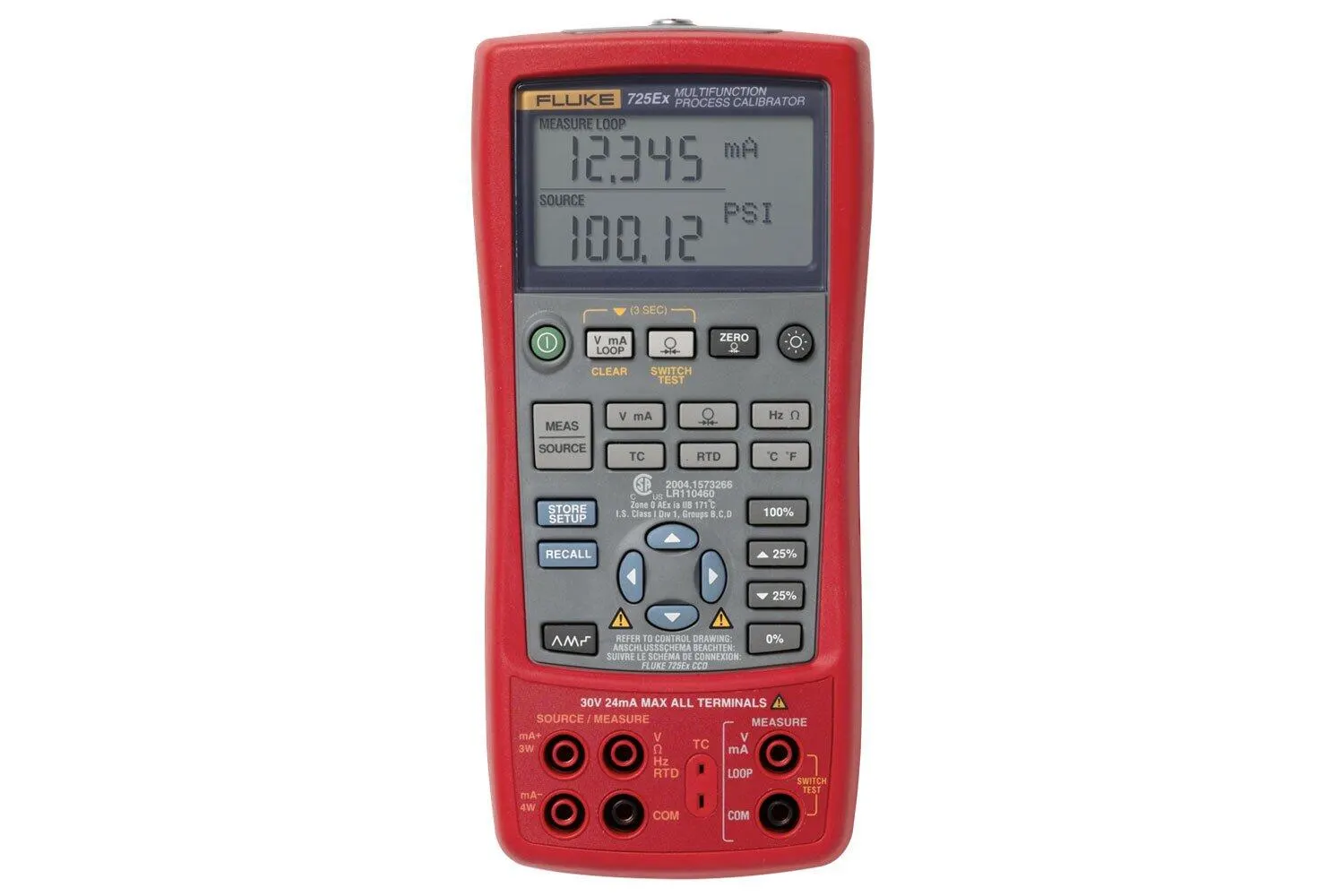

Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator

Fluke · Model 725Ex · Process Instruments

Intrinsically safe multifunction process calibrator for use in explosion-endangered (Ex hazardous) areas. Sources and measures almost all process parameters and, with 700PEx pressure modules, calibrates pressure transmitters and I/P devices in hazardous zones.

Key specifications

• I.S. Class I, Division 1 Groups B-D certified for hazardous areas
• Sources/measures mA, V DC, frequency, ohms, RTDs and thermocouples
• DC voltage and mA accuracy 0.02% + 2 counts
• Two-channel simultaneous source-and-measure split display
• Measures pressure to 3,000 psi/200 bar with intrinsically safe 700PEx modules
• Runs on 4 AA cells in a separate compartment (no calibration-seal break); 3-year warranty

Download the 725Ex datasheet (PDF)

Request a quote from Controware — your authorized Fluke distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
