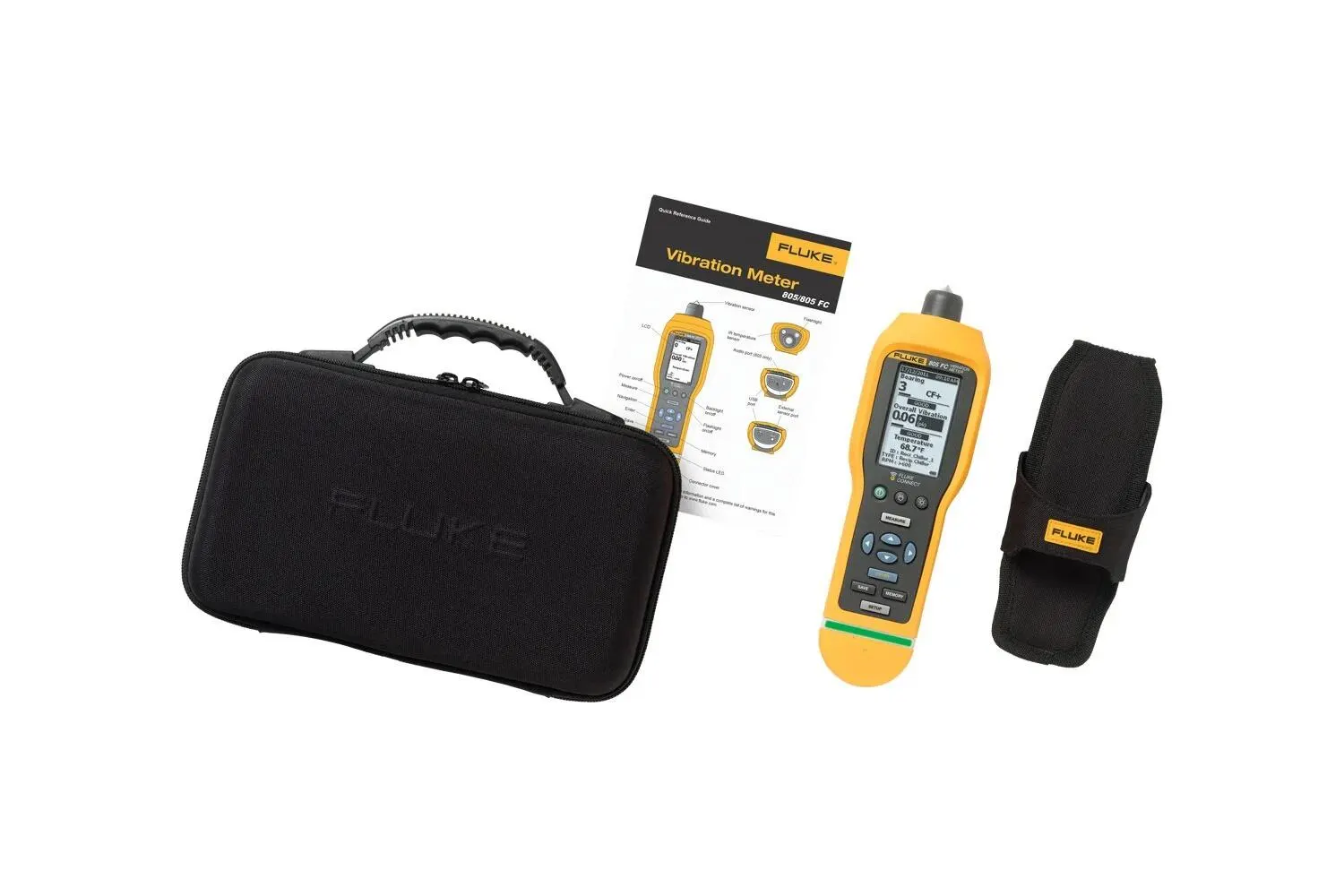

Fluke 805 FC Vibration Meter

Fluke · Model 805 FC · Environmental Testing

Frontline vibration screening tool that gives repeatable, severity-scaled readings of overall vibration and bearing health. Innovative sensor design minimises variation from angle or contact pressure, with Fluke Connect cloud sharing.

Key specifications

• Overall vibration range 10 Hz to 1,000 Hz; CF+ bearing range 4,000 Hz to 20,000 Hz
• Four-level severity scale (good, satisfactory, unsatisfactory, unacceptable)
• Acceleration, velocity and displacement units; sensor accuracy +/-5% at 100 Hz
• Built-in IR thermometer -20 degC to 200 degC (+/-2 degC)
• Stores up to 3,500 measurements; USB and Fluke Connect export
• IP54 rated, 1 m drop test; powered by 2 AA batteries

Download the 805 FC datasheet (PDF)

Request a quote from Controware — your authorized Fluke distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
