Fluke 810 Vibration Tester

Fluke · Model 810 · Environmental Testing

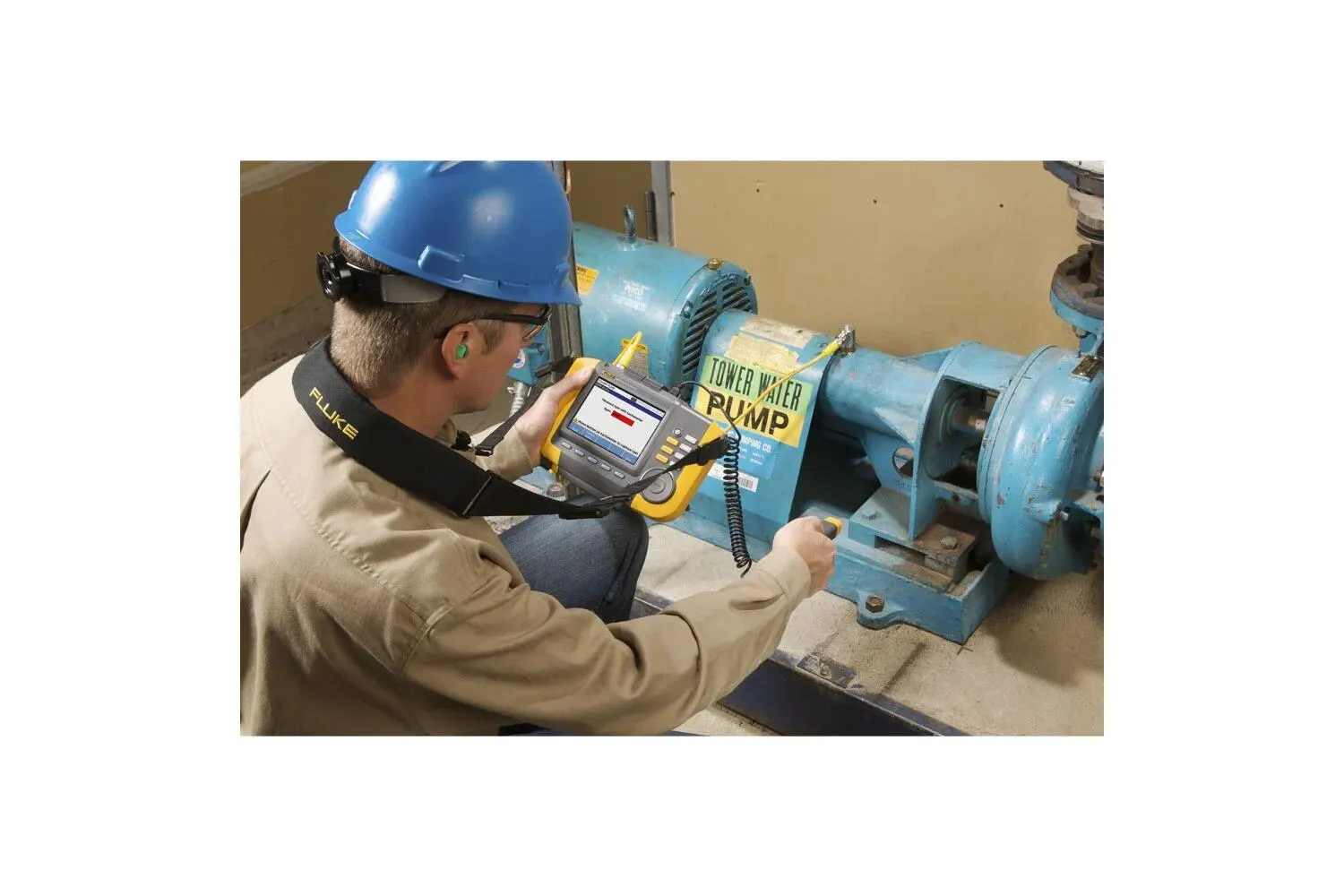

Handheld vibration tester with diagnostic technology that identifies and prioritises the most common mechanical faults (bearings, misalignment, unbalance, looseness) the first time measurements are taken. Provides plain-text diagnoses, severity levels and repair recommendations.

Key specifications

• Diagnoses unbalance, looseness, misalignment and bearing failures
• Motor rotational speed range 200 rpm to 12,000 rpm
• 4-channel, 24-bit A/D converter; usable bandwidth 2 Hz to 20 kHz
• Four-level fault severity scale with repair recommendations
• Tri-axial accelerometer and laser tachometer; 800-line FFT resolution
• Li-ion battery (8-hour life); 2 GB internal plus microSD storage

Download the 810 datasheet (PDF)

Request a quote from Controware — your authorized Fluke distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
