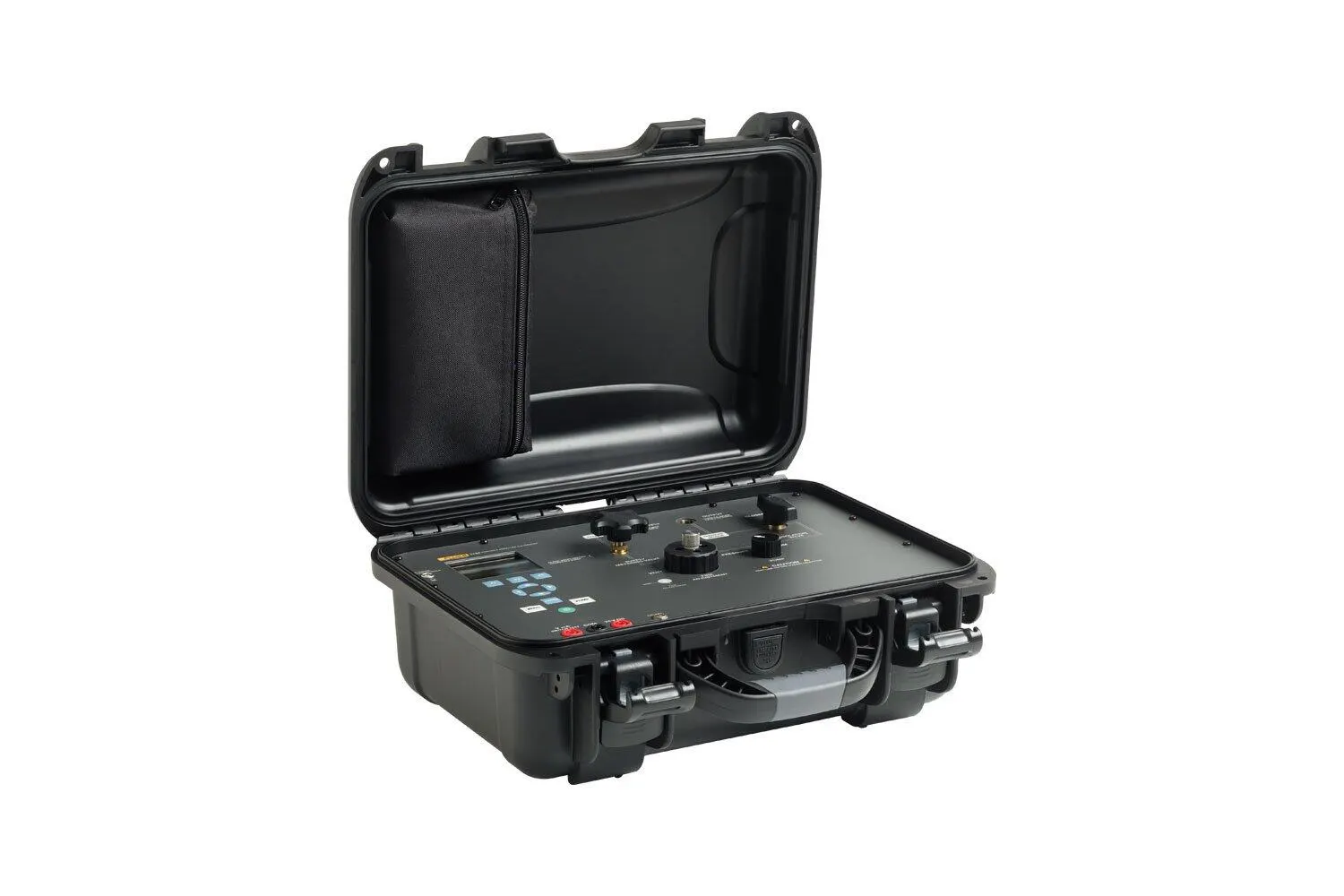

Fluke Calibration 3130 Portable Pneumatic Pressure Calibrator

Fluke Calibration · Model 3130 · Pressure Measurement

A rugged, portable pneumatic pressure calibrator with a built-in motorized pump that measures and generates from vacuum to 2 MPa (300 psi). Combines pressure generation, high-precision measurement and electrical (mA/V) test capability in one battery-powered field instrument.

Key specifications

• Pressure range: vacuum (-80 kPa) to 2 MPa (300 psi / 20 bar)
• Measurement accuracy: +/-(0.025 % of reading + 0.01 % FS)
• Medium: pneumatic; integrated motorized pump or external/plant-air supply
• Electrical: 4-20 mA and 0-30 V DC measure, 24 V DC loop power, 4-20 mA source
• Battery: rechargeable NiMH, up to ~50 h / ~100 calibrations to 300 psi per charge
• Ruggedized case with internal storage; COMPASS software data logging (model 3130-G2M)

Download the 3130 datasheet (PDF)

Request a quote from Controware — your authorized Fluke Calibration distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
