Fluke ii905 Acoustic Imager

Fluke · Model ii905 · Environmental Testing

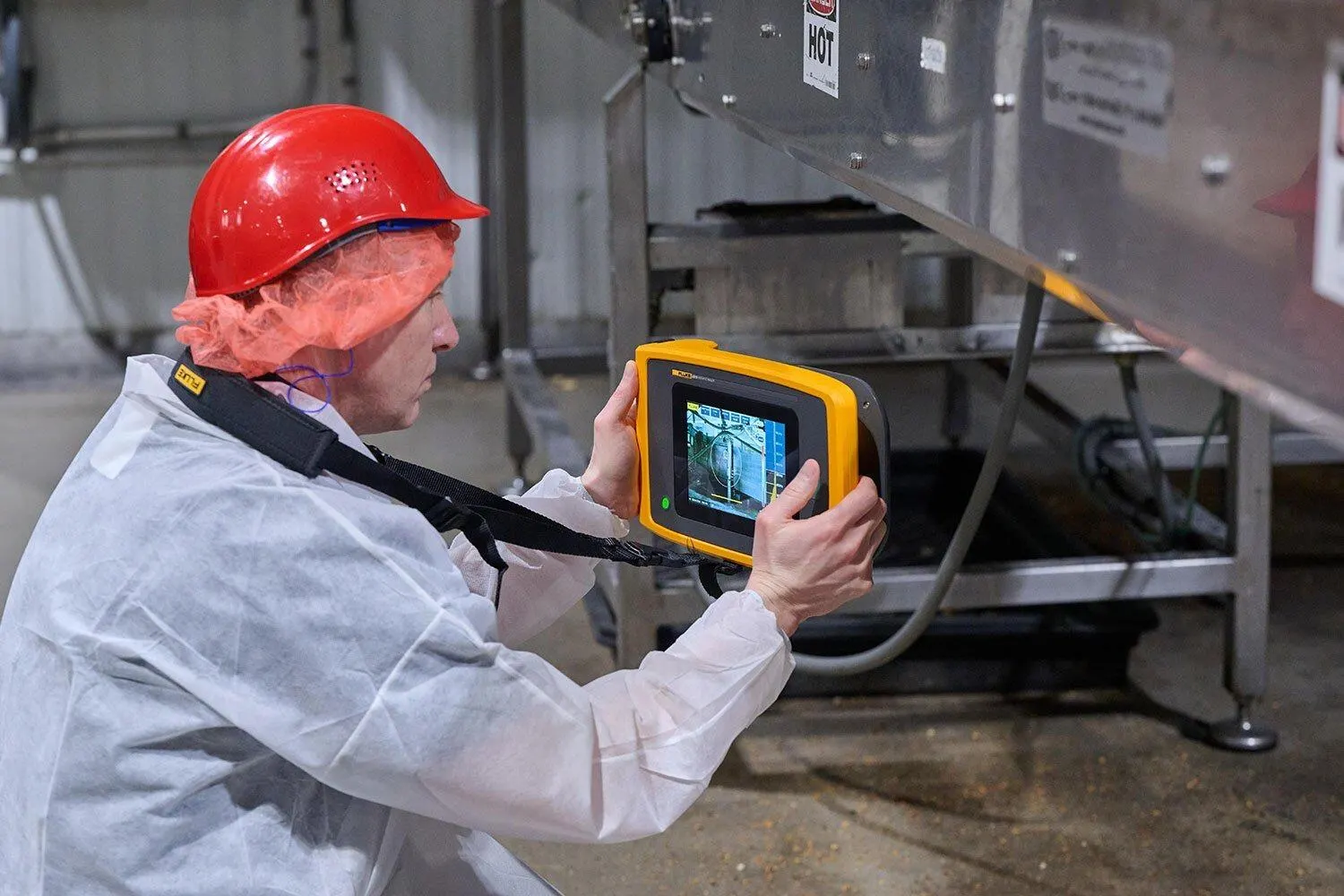

Handheld acoustic imaging camera that visualises compressed air, gas and vacuum leaks via a SoundMap overlay on the live image. LeakQ mode estimates leak size, rate and cost for fast energy savings.

Key specifications

• 64-microphone MEMS array; frequency band 2 kHz to 65 kHz
• Detection range 0.5 to >70 m (1.6 to >230 ft)
• 7-inch 1280 x 800 sunlight-readable capacitive touchscreen
• 5 MP visible camera with 3x digital zoom; 32 GB storage
• LeakQ leak size scale, leak rate and leak cost estimation
• 6-hour field-replaceable Li-ion battery; IP40; 2 kg

Download the ii905 datasheet (PDF)

Request a quote from Controware — your authorized Fluke distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
