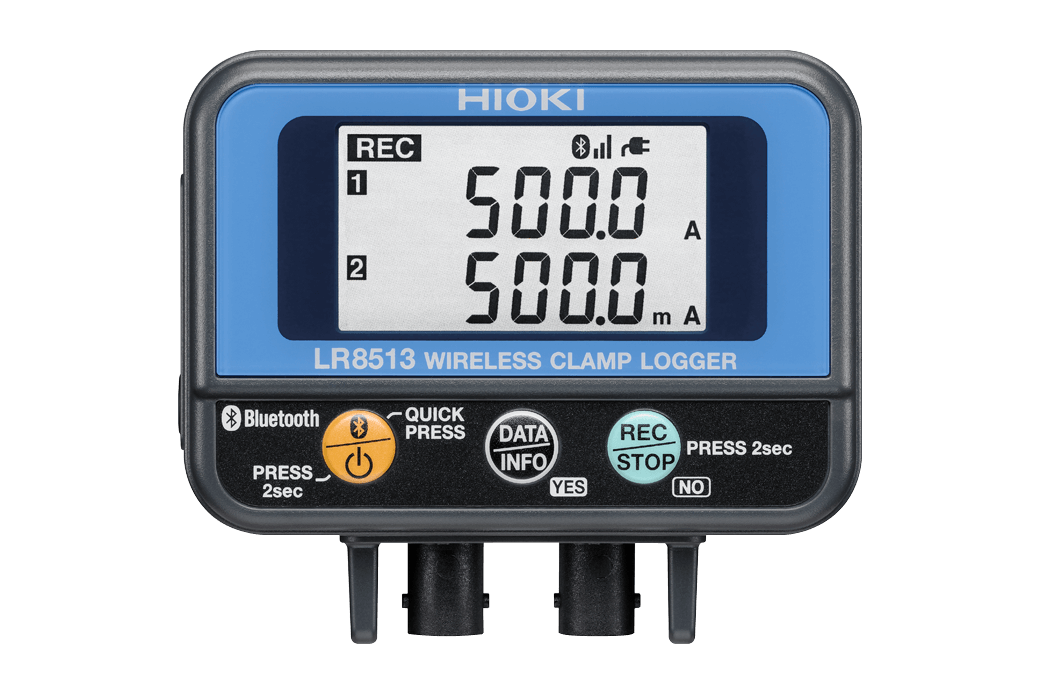

Hioki Wireless Clamp Logger LR8513

Hioki · Model LR8513 · Recorders/Data Loggers

Wireless 2-channel AC/DC current input logger that sends data over Bluetooth to a PC or Android tablet. Can be placed inside a closed distribution panel to monitor load and leakage current from the outside.

Key specifications

• 2 channels (common GND), AC/DC load current and AC leak current
• Measurement range 500 mA to 2000 A AC, 10 A to 2000 A DC (by sensor)
• Accuracy ±0.5% rdg. ±5 dgt. (DC, AC 50/60 Hz)
• 500,000 data items per channel; 0.5 s to 60 min intervals
• Up to 3 months operation (1 min interval, Bluetooth off)
• Usable standalone or as an LR8410 logging module

Download the LR8513 datasheet (PDF)

Request a quote from Controware — your authorized Hioki distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
