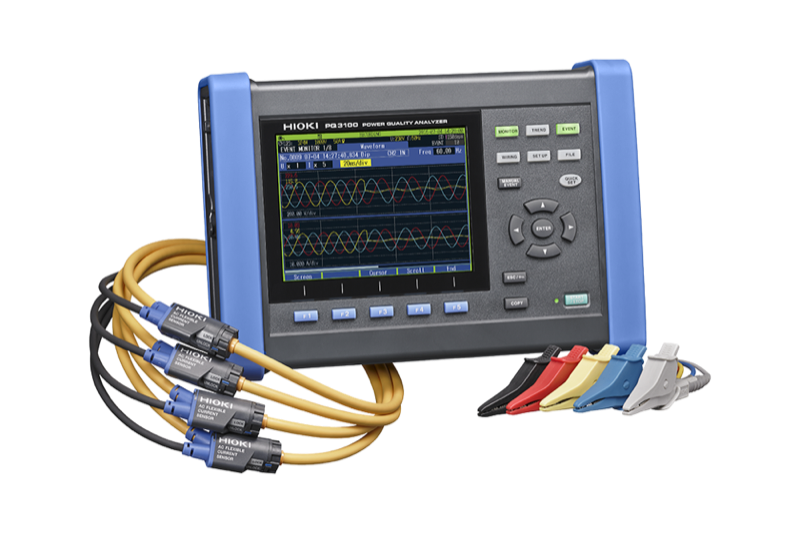

Hioki Power Quality Analyzer PQ3100

Hioki · Model PQ3100 · Power Quality

Mid-range 3-phase 4-wire power quality analyzer compliant with IEC 61000-4-30 Class S featuring a QUICK SET on-screen guide for easy setup.

Key specifications

• Voltage: 1000.0 V rms or DC, transient 2.2 kV peak
• Current: 50 mA to 5.0000 kA AC (sensor dependent)
• Basic accuracy: current +/-0.1% rdg. +/-0.1% f.s.
• Standard: IEC 61000-4-30 Class S compliant
• Recording: up to 9999 events, trend up to 1 year

Download the PQ3100 datasheet (PDF)

Request a quote from Controware — your authorized Hioki distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
