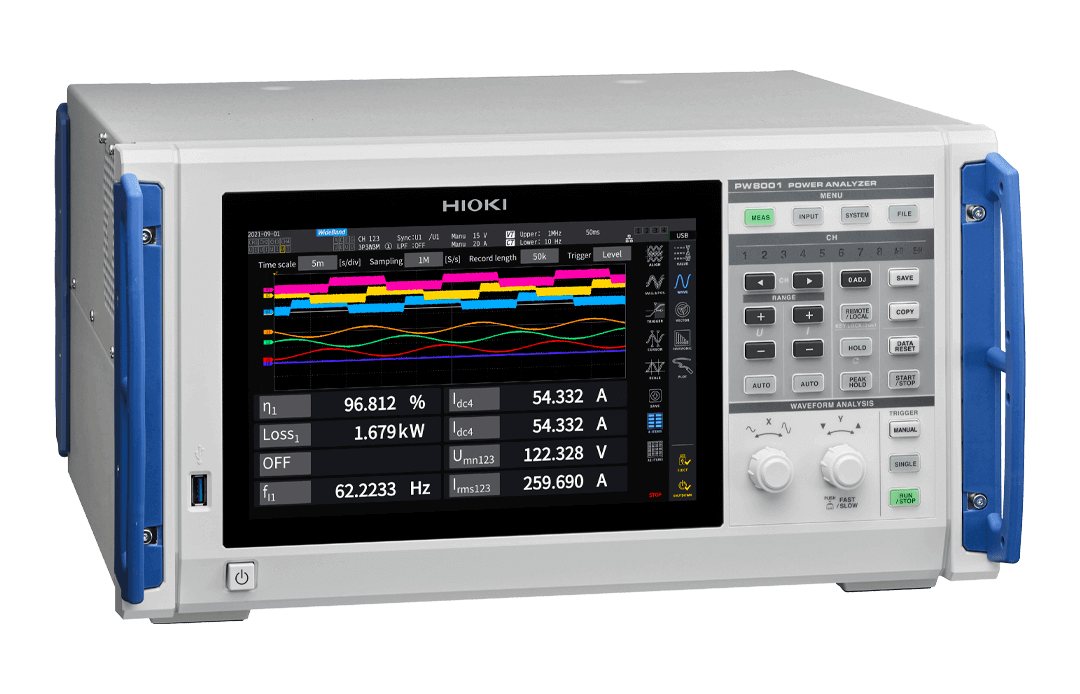

Hioki Power Analyzer PW8001

Hioki · Model PW8001 · Power Quality

Modular high-precision power analyzer with up to 8 input channels and DC to 5 MHz bandwidth for motor and inverter efficiency analysis.

Key specifications

• Basic power accuracy: +/-0.03% (DC +/-0.05%)
• Frequency band: DC, 0.1 Hz to 5 MHz (U7005)
• Sampling: 15 MHz, 18-bit (U7005)
• Input channels: up to 8 power channels
• Voltage rating: 1500 V DC CAT II / 1000 V DC CAT III

Download the PW8001 datasheet (PDF)

Request a quote from Controware — your authorized Hioki distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
