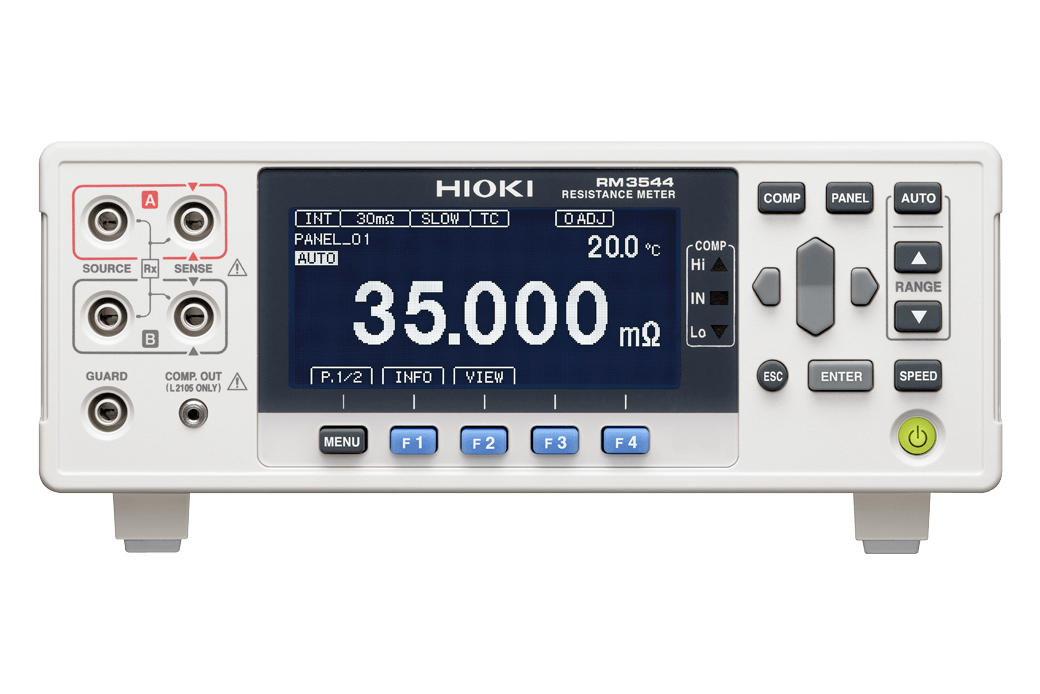

Hioki Resistance Meter RM3544

Hioki · Model RM3544 · Electronic Test Instruments

Wide-range 30 mΩ to 3 MΩ DC resistance meter with temperature correction for high-speed production-line testing of motor and transformer windings and contact resistance of relays, switches and connectors.

Key specifications

• Resistance 30 mΩ to 3 MΩ (9 ranges), 1 µΩ max. resolution
• Basic accuracy ±0.02% rdg. ±0.007% f.s.
• Max. measurable current 300 mA
• Simultaneous temperature measurement and correction
• Measurement speed FAST 18 ms (60 Hz)
• RM3544-01 adds EXT I/O, RS-232C and USB

Download the RM3544 datasheet (PDF)

Request a quote from Controware — your authorized Hioki distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
