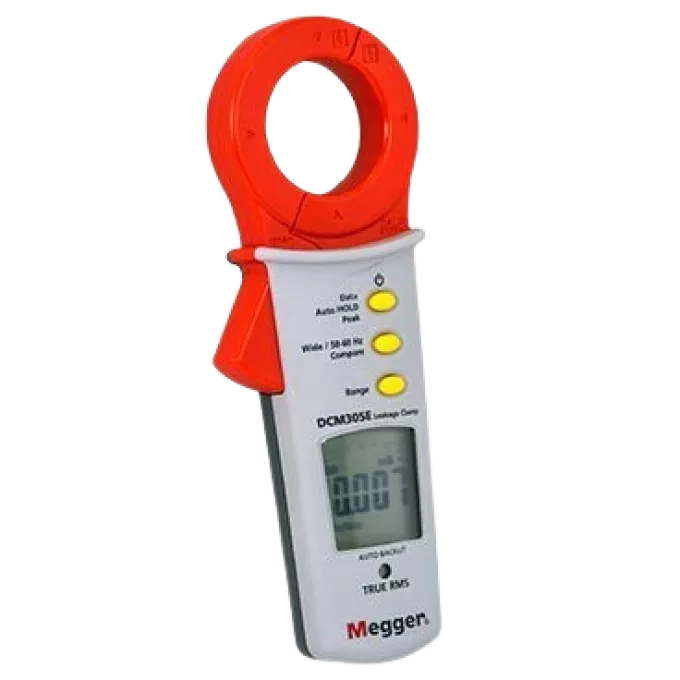

Megger DCM305E Earth Leakage Clamp Meter

Megger · Model DCM305E · Electrical Test Instruments

Earth leakage clamp meter designed to identify and measure leakage current in circuits where an RCD trips unexpectedly. Resolves down to 0.001 mA and also reads true-RMS load current up to 100 A.

Key specifications

• Six ranges: 6 mA, 60 mA, 600 mA, 6 A, 60 A, 100 A
• 0.001 mA minimum resolution; TRMS reading
• Low-pass 50/60 Hz filter for stable readings on noisy circuits
• 40 mm jaw for insulated and non-insulated conductors
• Compare function with 0.25/0.50/3.5 mA preset limits; data/auto/peak hold
• CAT III 300 V; pocket-sized with hand-guard

Download the DCM305E datasheet (PDF)

Request a quote from Controware — your authorized Megger distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
