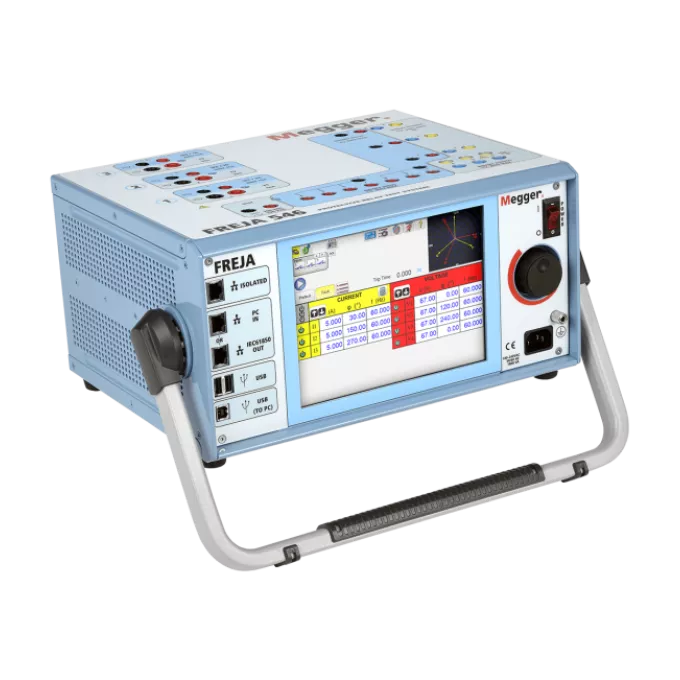

Megger FREJA 546 Relay Test System

Megger · Model FREJA546 · Electrical Test Instruments

Megger FREJA546

Multipurpose, portable secondary-injection relay test set operable via built-in touch-screen or full computer control.

Key specifications

  • Current output: up to 6 sources (32 A continuous)
  • Three currents in parallel: 180 A at 957 VA RMS
  • AC voltage: 3 sources 0 to 300 V AC/DC at 150 VA
  • Phase angle accuracy: <0.1 degrees at 50/60 Hz
  • Input power: 90 to 264 V AC, 50/60 Hz

Download the FREJA546 datasheet (PDF)

Request a quote from Controware — your authorized Megger distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
