Megger S1 Series Insulation Resistance Testers

Megger · Model S1-568 / S1-1068 / S1-1568 · Electrical Test Instruments

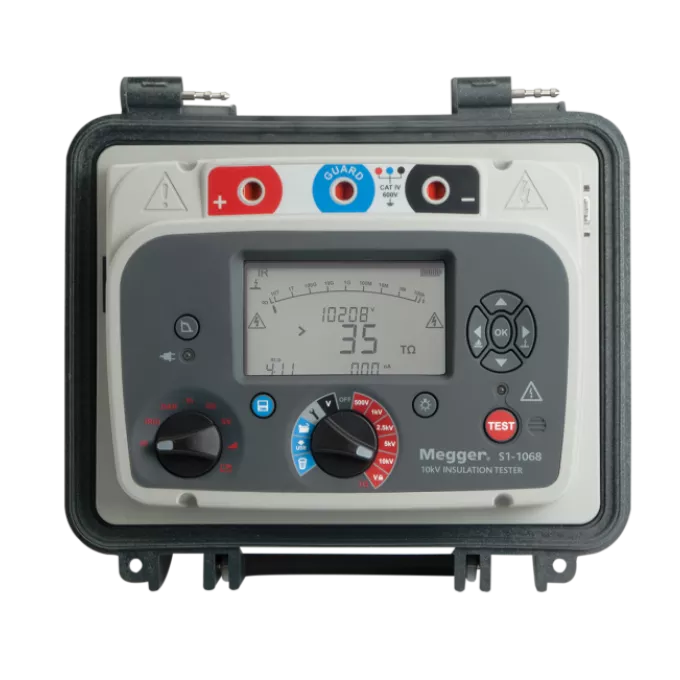

Megger S1-568 / S1-1068 / S1-1568

Expert-range 5/10/15 kV DC diagnostic insulation testers for power utilities and service companies, with class-leading 8 mA noise rejection and four software filters. Built to deliver dependable results even in extreme EHV substation environments.

Key specifications

  • Test voltages: 5 kV (S1-568), 10 kV (S1-1068), 15 kV (S1-1568)
  • Resistance range up to 15 TOhm (5 kV) / 35 TOhm (10 & 15 kV)
  • 8 mA noise rejection plus four user-selectable filters (10/30/100/200 s)
  • 6 mA short-circuit charge current; IR, DAR, PI, DD, SV and ramp tests
  • Rapid-charge Li-ion battery, up to 6 h testing; runs on AC with flat battery
  • CAT IV 600 V (S1-568/1068) / CAT IV 1000 V to 4000 m (S1-1568), Bluetooth

Download the S1-568 / S1-1068 / S1-1568 datasheet (PDF)

Request a quote from Controware — your authorized Megger distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
