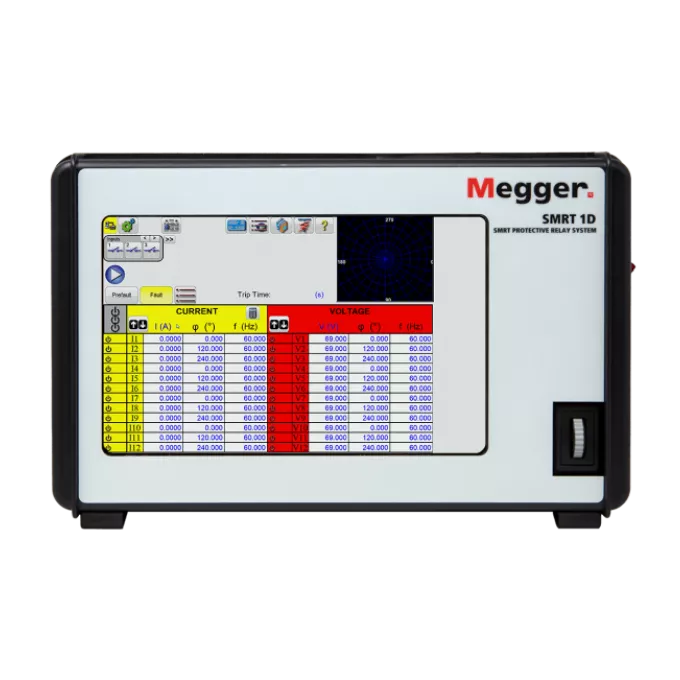

Megger SMRT1 / SMRT1D / SMRT1B Single-Phase Relay Test System
Megger · Model SMRT1 · Electrical Test Instruments
Compact, high-power single-phase protective relay test set with full IEC 61850 GOOSE and Sampled Values capability. Daisy-chains with other SMRT units to build multi-phase systems for testing complex protection schemes.
Key specifications
- Current channel 32 A continuous at 200 VA, up to 60 A (319 VA) short-duration
- Voltage channel 0-30/150/300 V at 150 VA; 50 V high compliance for high-impedance relays
- IEC 61850: multiple GOOSE messages plus 3 Sampled Values streams (4V/4I each)
- Daisy-chain via Ethernet for 3-phase and up to 30 currents (bus differential)
- STVI Smart Touch View Interface or onboard display; RTMS PC control
- SMRT1B battery-powered option (DeWALT FlexVolt); rugged field enclosure
Download the SMRT1 datasheet (PDF)
Request a quote from Controware — your authorized Megger distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
