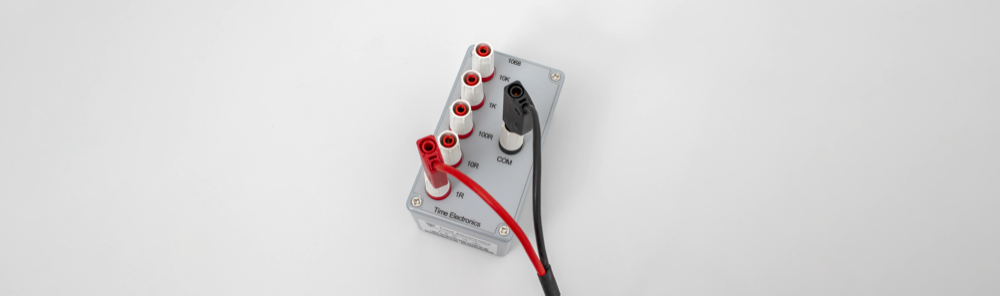

Time Electronics 1068 Precision Fixed Resistance Box

Time Electronics · Model 1068 · Calibration Instruments

A compact 5-value fixed resistance box using precision resistors, popular in physics and electronics teaching laboratories as well as industrial and general lab use.

Key specifications

• Fixed values: 1 ohm, 10 ohm, 100 ohm, 1 kohm, 10 kohm
• Accuracy: 1 ohm +/-1 mohm, 10 ohm +/-5 mohm, 100 ohm +/-10 mohm, 1 kohm +/-100 mohm, 10 kohm +/-1 ohm
• Maximum voltage rating 250 V DC / AC RMS
• Power rating 0.33 W per resistor
• Dimensions 115 x 65 x 86 mm, weight 0.29 kg
• 4 mm safety terminals; robust portable case

Download the 1068 datasheet (PDF)
