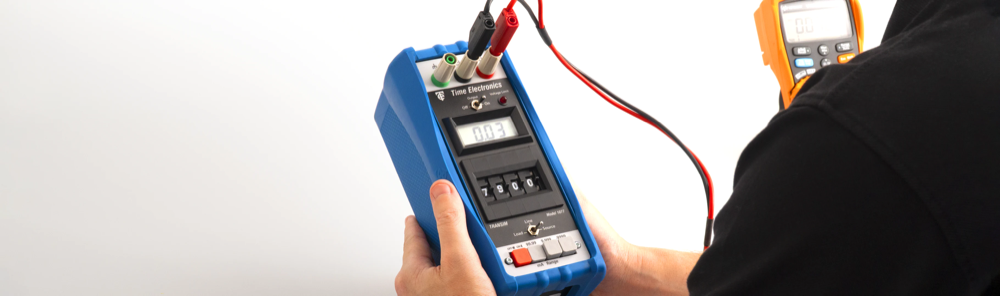

Time Electronics 1077 Milliamp Transducer / Line Simulator

Time Electronics · Model 1077 · Calibration Instruments

A multi-purpose handheld instrument acting as an adjustable current load, adjustable power supply or precision current source, used to test and simulate milliamp transducer systems.

Key specifications

• Adjustable current load (transducer simulation) drawing up to 100 mA
• Adjustable power supply 14 V to 40 V with line-current measurement
• Precision current source 0 to 100 mA in 3 ranges (10 uA steps)
• 3.5-digit (1999) LCD indicating line current
• Rechargeable batteries and mains charger supplied; ~10 h per charge
• Compact rugged design with protective rubber cover

Download the 1077 datasheet (PDF)

Request a quote from Controware — your authorized Time Electronics distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
