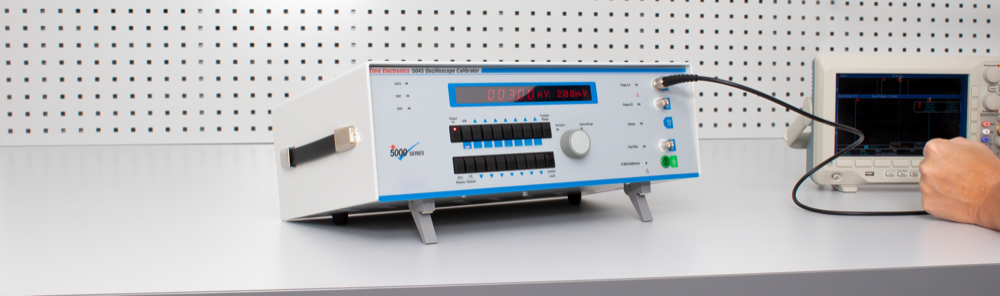

Time Electronics 5045 Oscilloscope and Timer / Counter Calibrator

Time Electronics · Model 5045 · Calibration Instruments

A versatile high-accuracy calibrator for digital and analogue oscilloscopes, timer/counters and frequency meters, providing amplitude, frequency, period and bandwidth outputs with fast-rise and optional GHz sweep.

Key specifications

• Amplitude 1 mV to 220 V square wave / DC (2 V max into 50 ohm)
• Frequency 0.1 to 100 MHz; time markers 10 s to 10 ns
• Fast rise time < 300 ps; bandwidth testing to 600 MHz
• Timing accuracy 0.1 ppm; external reference input
• Interfaces RS-232, USB, GPIB; front-panel or PC virtual control
• Options: 2.2 GHz levelled sine, rubidium reference (9762), current probe adaptor

Download the 5045 datasheet (PDF)

Request a quote from Controware — your authorized Time Electronics distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
