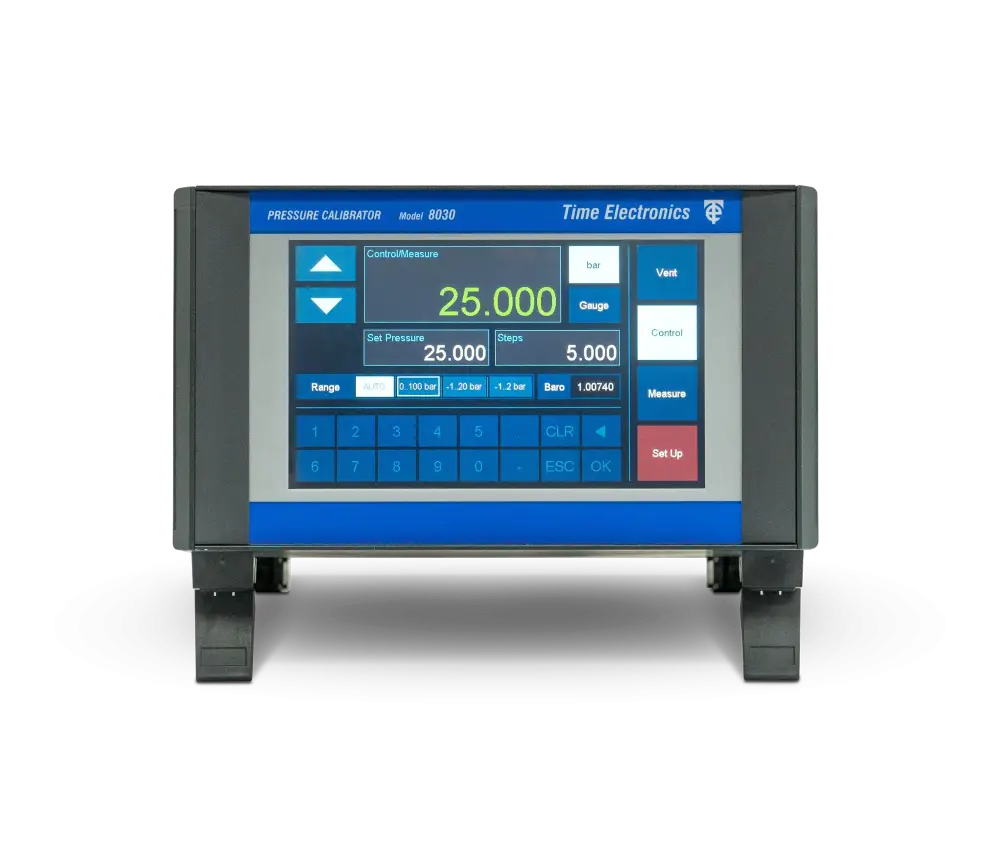

Time Electronics 8030 Advanced Pressure Controller/Calibrator

Time Electronics · Model 8030 · Pressure Measurement

An advanced touch-screen pressure controller/calibrator for wide workload calibration of transmitters, sensors and gauges. The pneumatic 8030 covers vacuum to 200 bar, while the hydraulic 8030H variant extends coverage up to 1000 bar.

Key specifications

• Pneumatic: configurable -1 to 100 bar with up to 3 internal sensors; dual-sensor high-pressure models to 200/230 bar (3350 psi)
• Hydraulic (8030H/8030B-H): 400, 600, 700 and 1000 bar (15,000 psi) versions with under-bench cabinet
• Accuracy 0.01 % FS per sensor; control stability < 0.005 % FS
• Gauge, compound, absolute and differential; optional barometric reference (800-1200 mbar)
• 7" colour touch screen, virtual control app and EasyCal software
• Minimess ports (BSP/NPT); supplied with 7161 manifold and 7115 contamination trap

Download the 8030 datasheet (PDF)

Request a quote from Controware — your authorized Time Electronics distributor in the UAE, KSA and Egypt — buy or rent with genuine stock, calibration and technical support.
